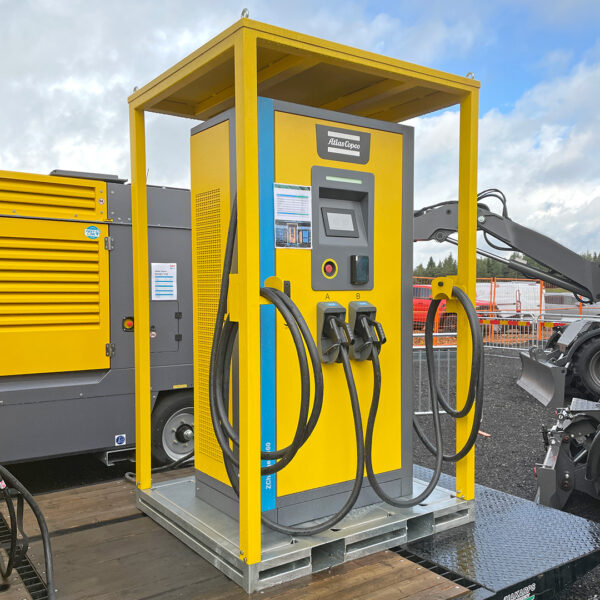

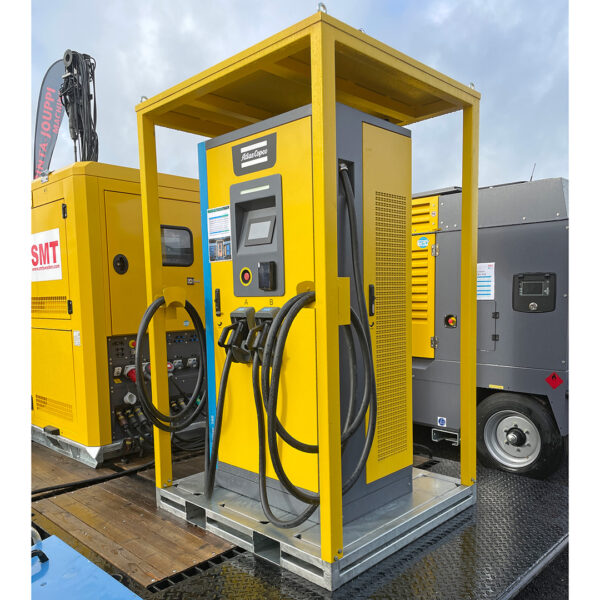

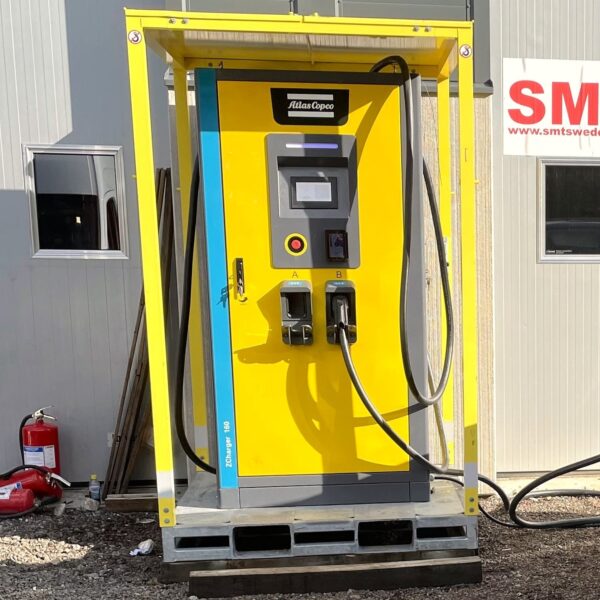

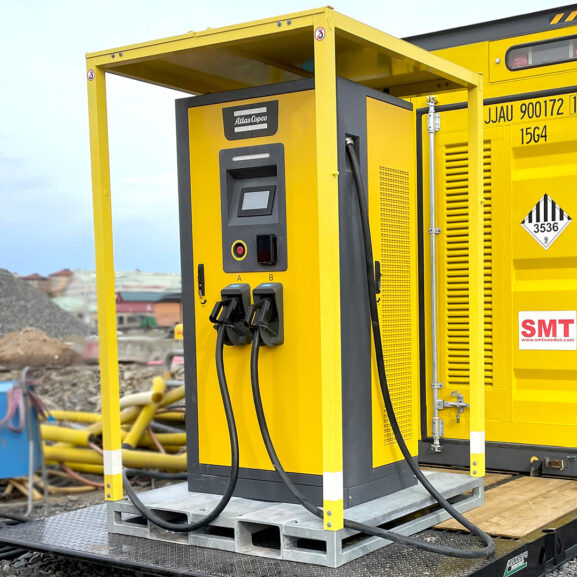

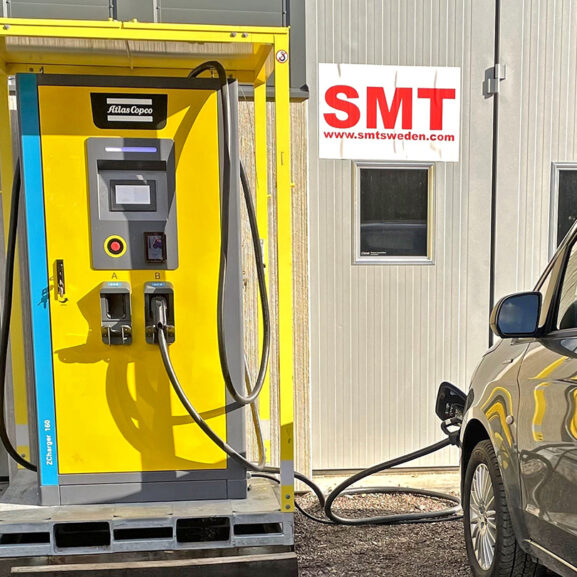

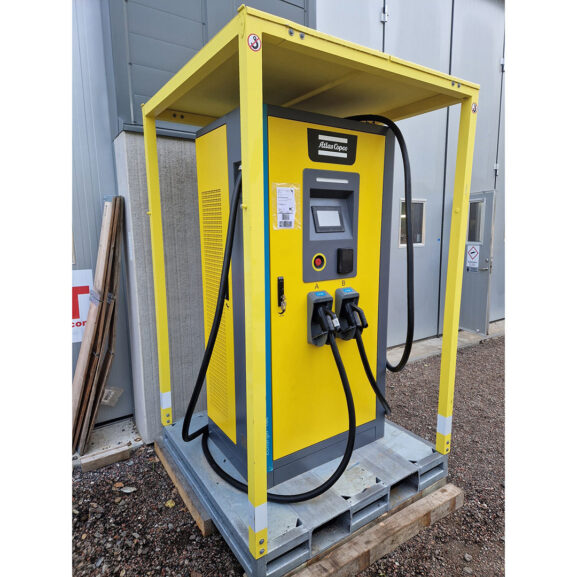

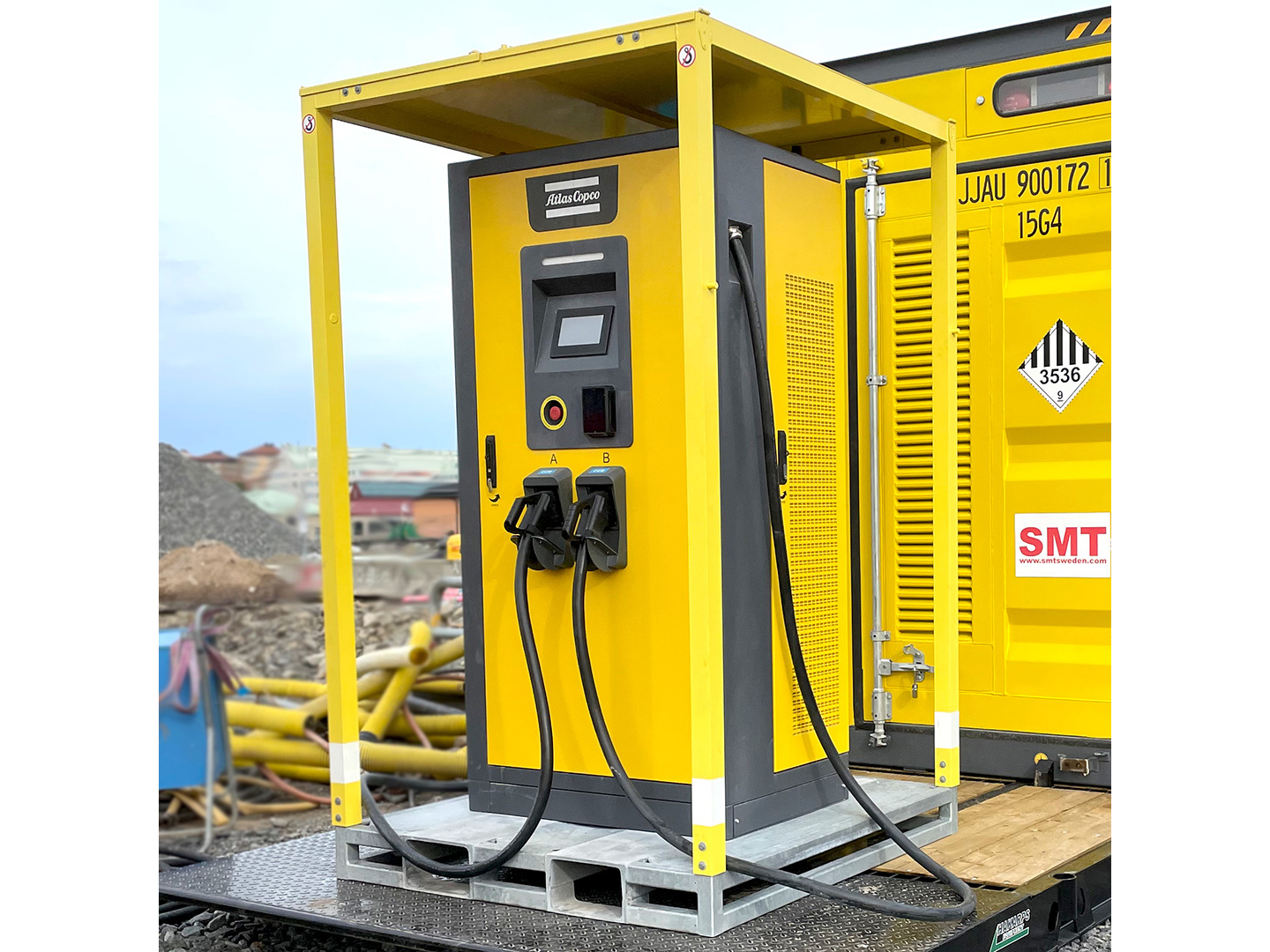

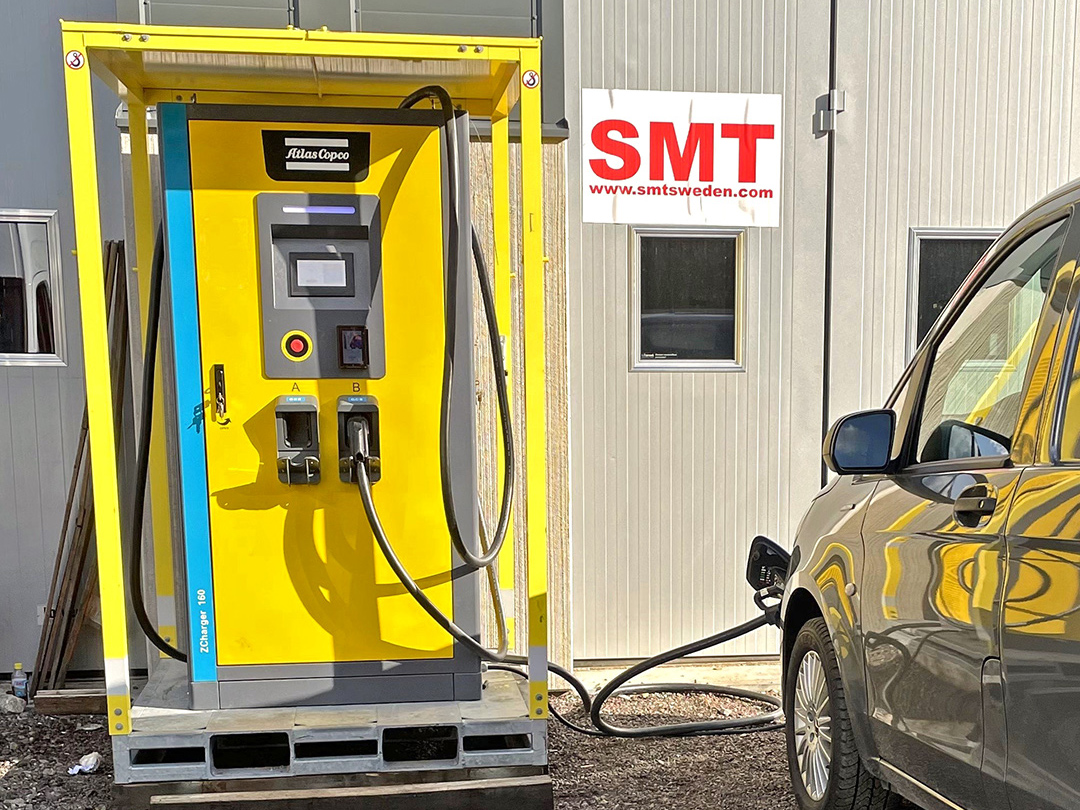

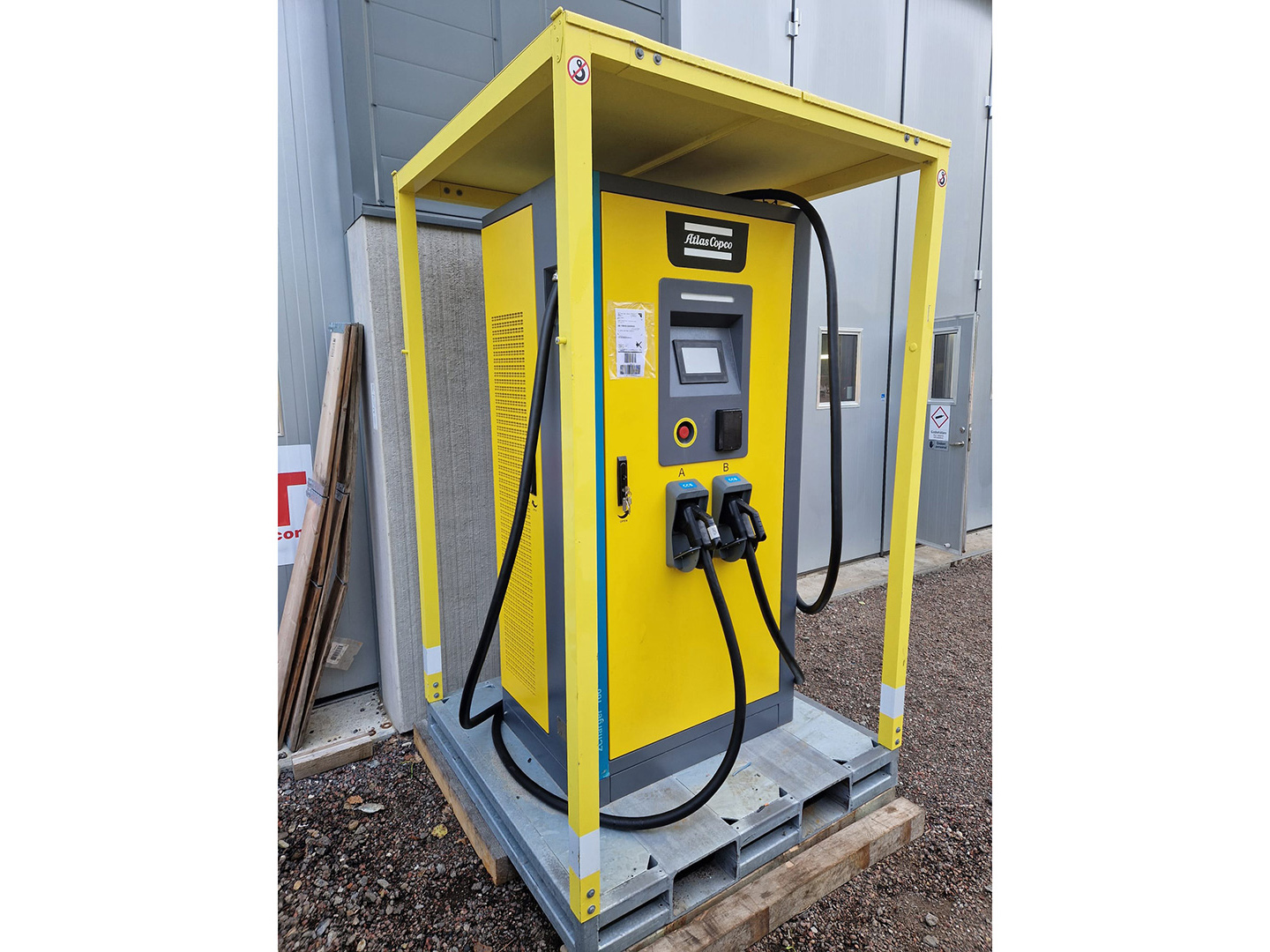

Atlas Copco Z-Charge 160kW, 2022

Atlas Copco Z-Charge 160kW, Fast Charger

Year: 2022
Ref nr: 16830

Technical Information FCP 160

– Nominal input/output power (PF = 0.99): 160 kW

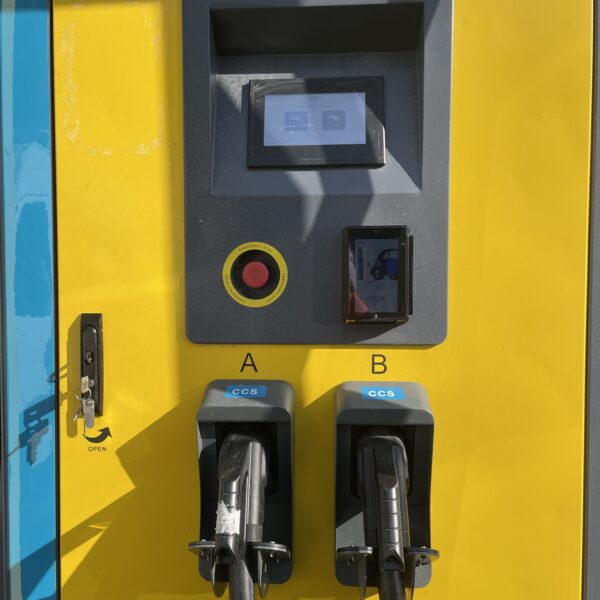

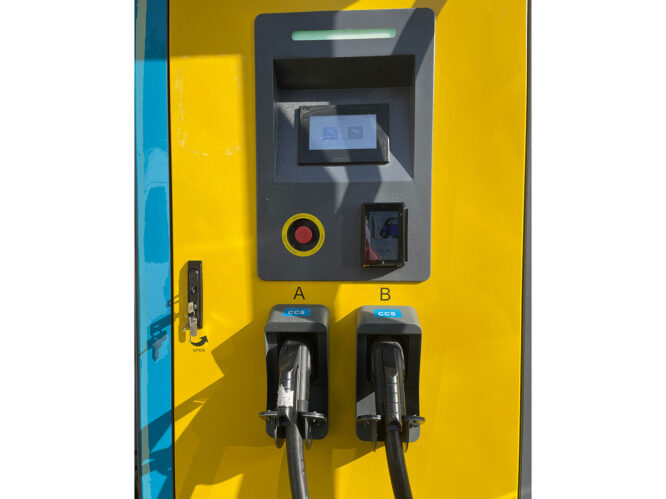

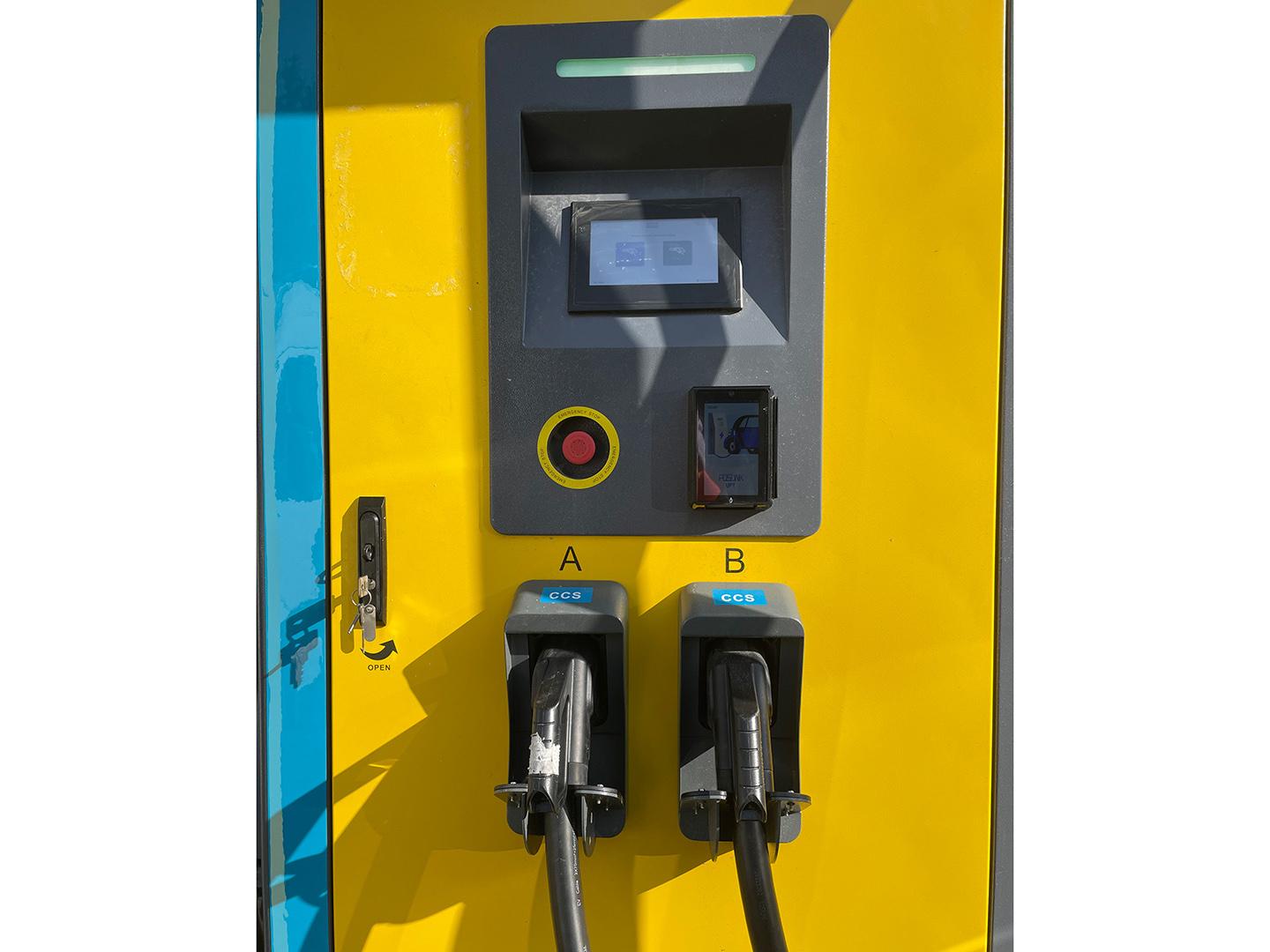

– Connector type: 2x CCS 2
– Number of outputs / cable length: 2 / 7 meters
– Charging current: 200 A
– Nominal input voltage (50 Hz): 380 V AC ± 15%
– Output voltage range: 200–1,000 V DC

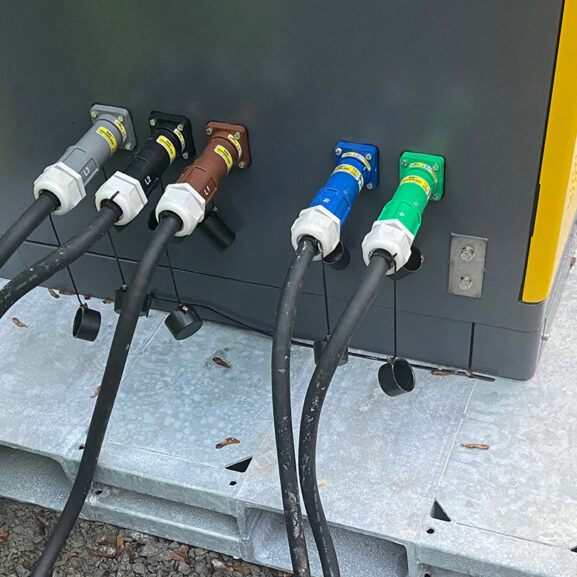

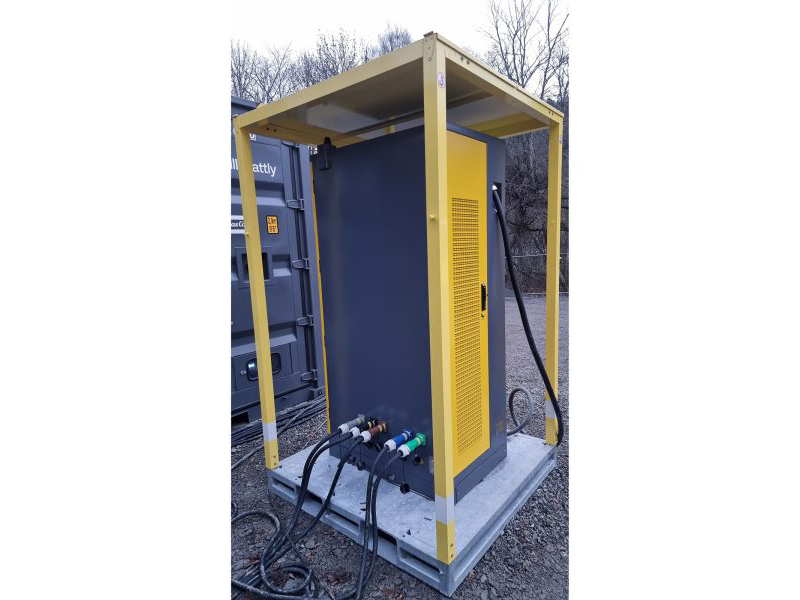

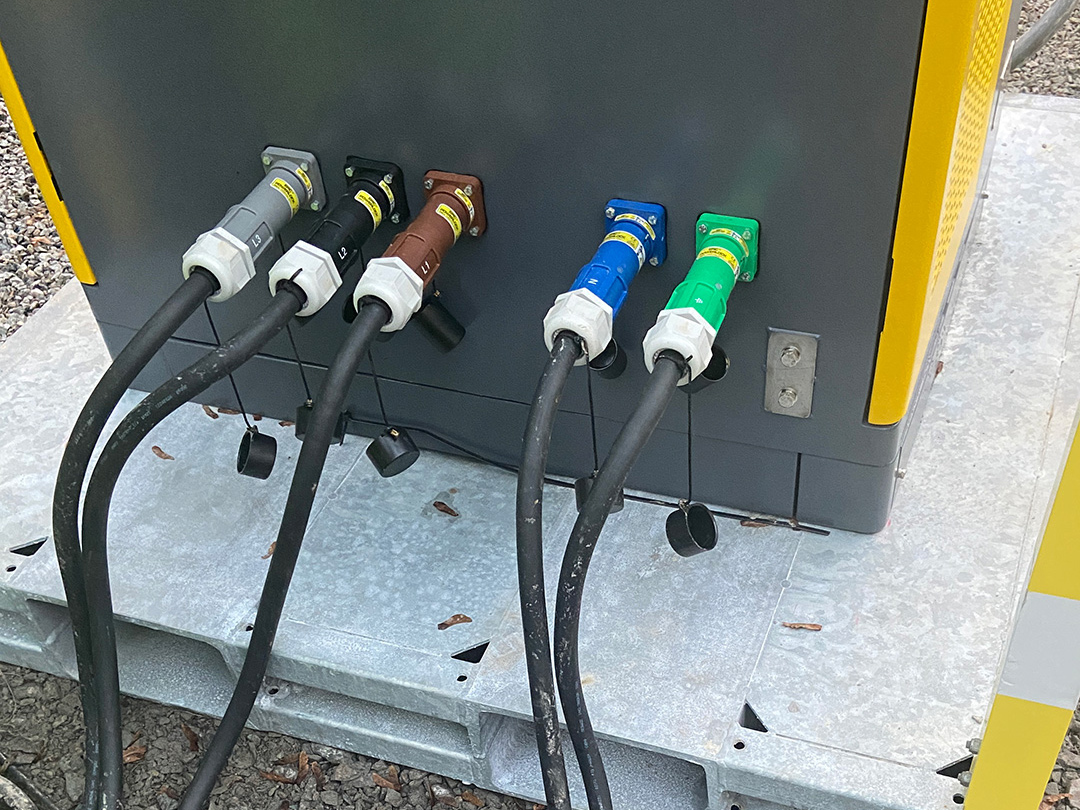

– Input type: 4x PowerLock sockets 400 A
– Enclosure rating (IP): 55
– Cooling method for AC/DC: Forced air cooling
– Operating temperature: -25 °C to +50 °C
– Communication interfaces: Ethernet / GPS / 3G / 4G / WiFi
– Dimensions (L x W x H): 1,408 mm × 1,308 mm × 2,376 mm
– Weight: 750 kg
– Sound power level: < 70 dB(A) at 1 m from user unit
